ARB Intensity IQ LED 4x4 Driving Lights
ARB's Intensity IQ has been developed from the ground up, with performance front of mind, whilst delivering a design that complements modern vehicle styling and bar work. With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC-machined ARB logo provide a modern, classy and premium new look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.
| Brand | ARB |
|---|
Overview

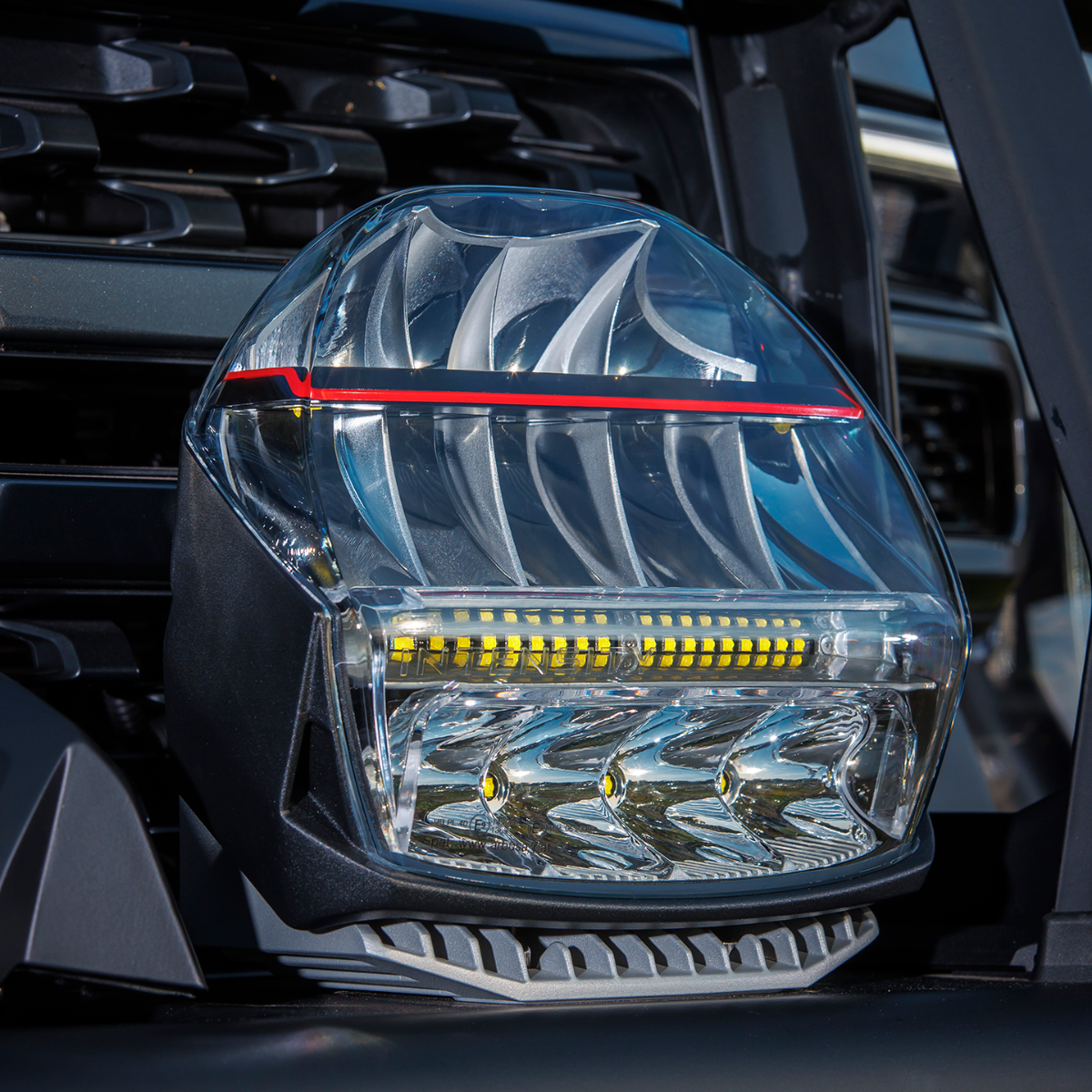

Inspired by the front view of a jet engine, the ARB Intensity IQ LED Off-Road Driving Lights have been designed from the ground up, with performance front of mind, whilst delivering a design that complements modern vehicle styling and bar work. The clear front lens, bezel-less design, subtle horizontal ARB red line and machined ARB logo, provide a modern, classy and premium new look.
Features and Benefits
- Provides 8 selectable and customisable preset light beams
- Turn on/off courtesy feature and adjust timer
- Setup the fade/ in/out feature
- Adjust the intensity of each row of optics to create your ideal beam pattern
- Select a light network to connect (eg 4+ lights)
- Activate the work light function (lights on without high beam on)
- Set the onboard switch response time
- Download the app from the Apple App Store or Google Play Store
Unique 4-optic Design
A unique 4-optic design (Super Spot, Spot, Flood, and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition. The Super Spot and Spot optic, based on free-form reflector technology, produce an even spot beam for extended-distance illumination.
Control Your Illumination
To accompany the revolutionary Intensity IQ light, ARB has developed a physical switch controller that is equally as intuitive. Have access to up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ to your needs. The Intensity IQ controller unlocks a world of possibilities when exploring, presenting a premium easy-to-use tool that will give you choice at the click of a button.
ARB Intensity IQ App
Finding the right balance of lighting when tackling not only tracks but also country roads can be challenging. ARB has taken this into account when designing the ARB Intensity IQ app, which allows users to control and set from the thousands of light combinations available with the ARB Intensity IQ lights- straight from your mobile device!
Choose From Thousands Of Beam Patterns

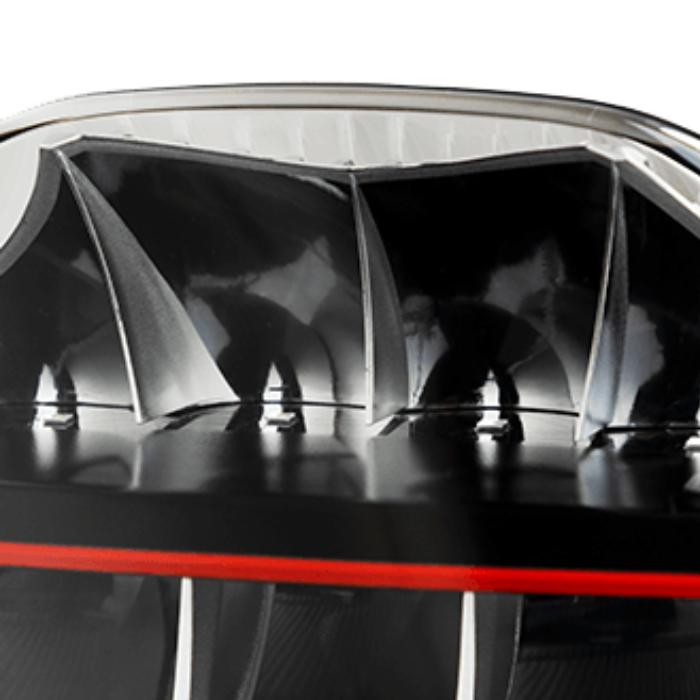

Super spot
Comprised of 4 x Cree XP-P LEDs engineered to provide the furthest projection of light.

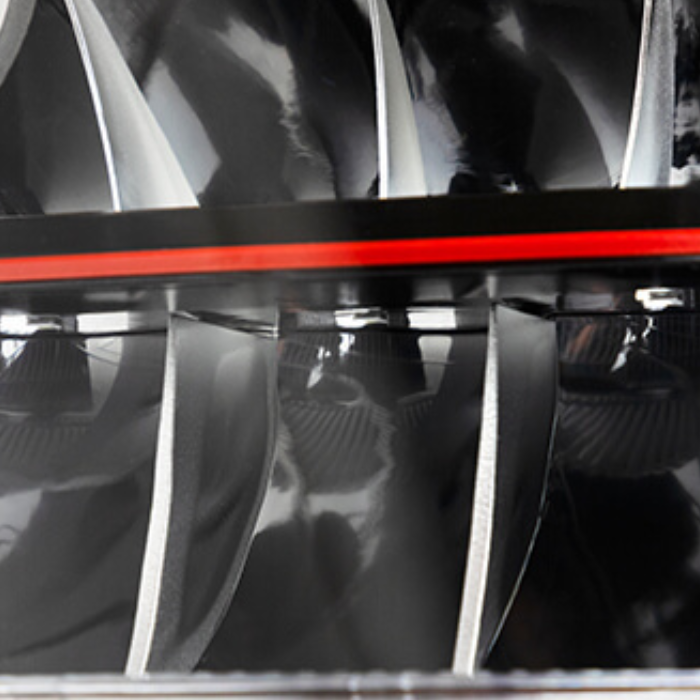

Spot
Designed with 2 x Cree XM-L3 and 3 x XP-P LEDs to provide a broader, yet focused beam of light.

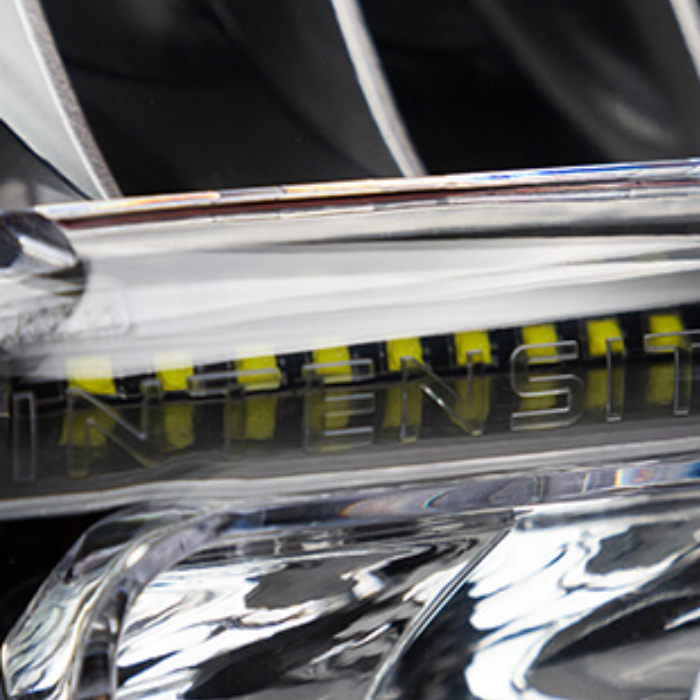

Flood
The Flood is made up of 18 x Cree XT-E LEDs, providing optimum peripheral illumination.

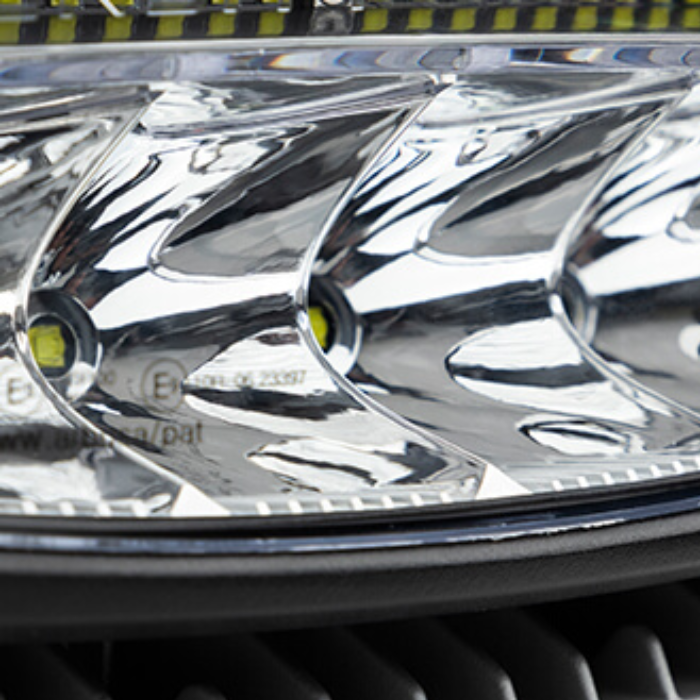

Midrange
Contains 4 x Cree XM-L3 LEDs, giving a balance between distance and spread.
Specifications
| Input |
11-32V |
| Power |
170 W @ 13.2V |
| Current Draw |
12.9 A 13.2V |
| Output - Raw (Per Light) |
Max Spot 7,070 lumens |
|
Max Flood 14,060 lumens |
|
| Output - Effective (Per Light) |
Max Flood 6,666 lumens |
|
Max Combo 6,265 lumens |
|
|
Max Spot 6,613 lumens |
|
|
Operating Temperature (°C) |
-40°C to +80°C |
|
Operating Temperature (°F) |
-40°F to +176°C |
| Colour Temperature |
|
| Weight |
3.8kg (8.4Ibs) |
| Dimensions (mm) |
220mm (w) x 215mm (h) x 142mm (d) |
| Dimensions (inches) |
8.7" (w) x 8.5" (h) x 5.6" (d) |
| Warranty |
3 years |

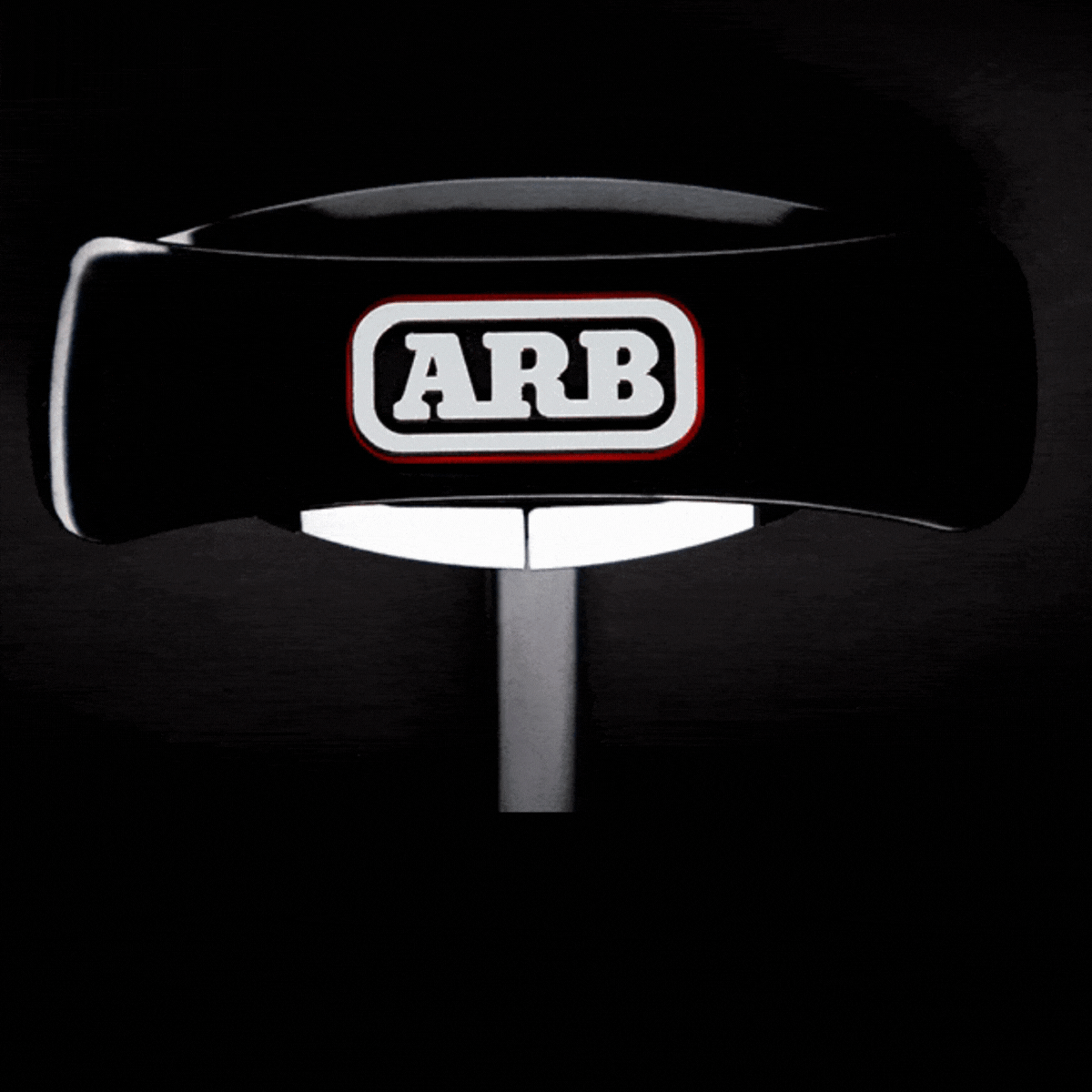

Take Control
The Intensity IQ control sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself.
Kit Includes
- 2 x Digitally controlled driving lights
- 2 x Mounting brackets and mounting hardware kits
- 1 x Vehicle harness
- 1 x Switch with cable and connector
- 1 x Control module with cable and connector
- 1 x Set security bolts & tool
