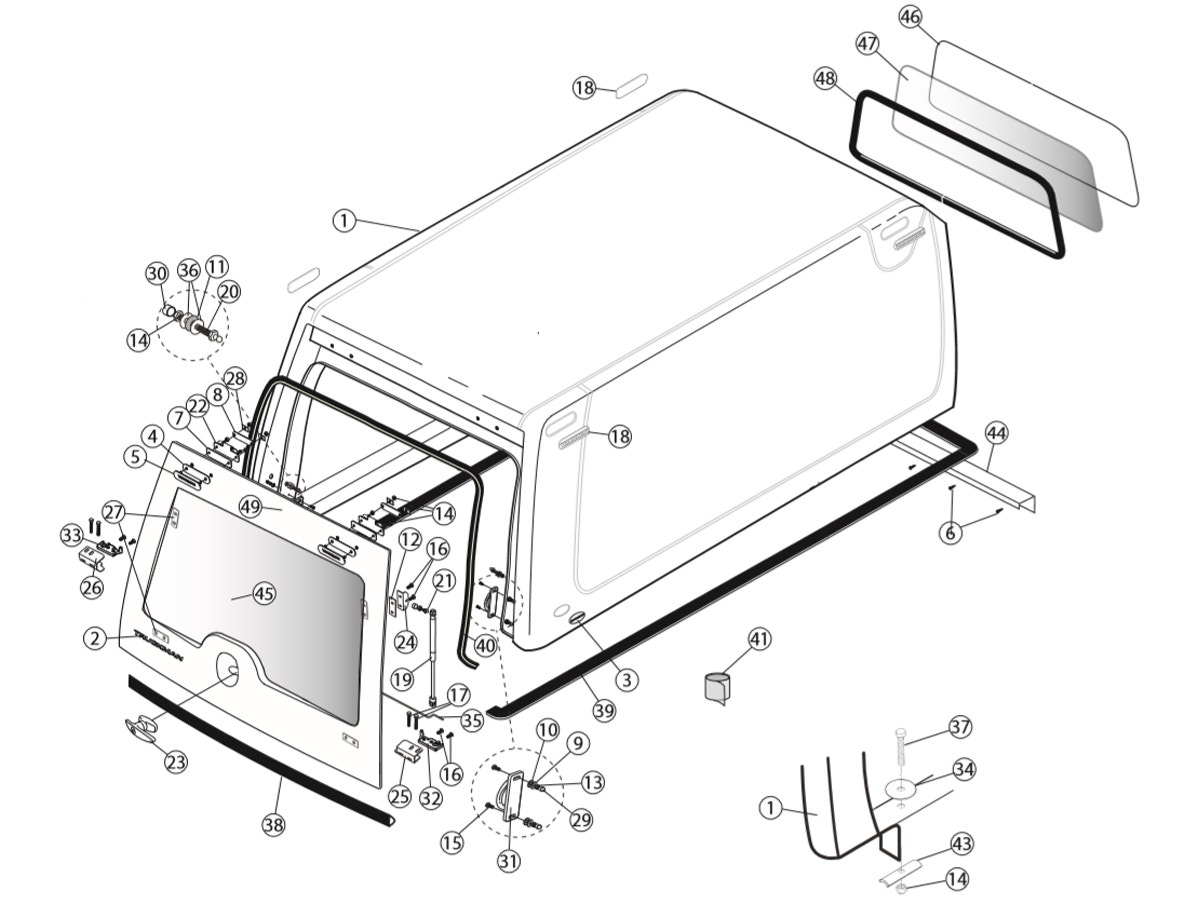

Truckman Classic Toyota Hilux Mk8 (2016 – 2020) Single Cab Spare Parts
Version 1.1
| No. | Component | Quantity |
| 1 | Classic High Roof Hardtop White Shell | 1 |
| 2 | Truckman Tailgate Logo Silver | 1 |
| 3 | Truckman Oval Logo Decal | 2 |
| 4 | Rubber Gasket: AeroTop 2 & 3 | 2 |
| 5 | Two Part Stud Sets For AeroTop 2 & 3 Hinges | 2 |
| 6 | #10x24x19mm Self-Drilling Wafer Head Screw | 6 |
| 7 | Hinge Rubber Gasket | 2 |
| 8 | Hinge to Shell Rubber Gasket | 2 |
| 9 | Flat Washers M5 x 19mm x 1.5mm (A2 Stainless Steel) | 4 |
| 10 | Plain Black CQ Rubber Washer 5mm I/D x 19mm O/D x 1.5mm Thick | 4 |
| 11 | Black Washer For ZFIX951 & ZFIX950 | 2 |
| 12 | Gas Strut Mount Bracket Gasket *M* | 2 |
| 13 | Nuts 5mm Nylon Lock | 4 |
| 14 | Nuts 8mm Nylon Lock | 18 |
| 15 | M5 x 20mm Pozi Pan Head A2 Stainless Screws | 4 |
| 16 | Screws M6 x 16mm A2 Pozi Pan Stainless DIN7985 | 8 |
| 17 | At3 Hex Screw Set (1/4” Unc X 1”) | 4 |
| 18 | Red Truckman Resin Badge | 4 |
| 19 | Struts Gas Strut 170N/Stroke | 2 |
| 20 | End Connectors For ZGS170 | 2 |
| 21 | Ball Stud Connector For ZGS270 | 2 |
| 22 | Hinge Assembly Unit | 2 |
| 23 | Tailgate T- Handle (Inc. Keys & Gasket) Utility Top | 1 |
| 24 | AeroTop Gas Strut Tailgate Mounting Bracket | 2 |
| 25 | Slam Lock Mounting Plate L/H | 1 |
| 26 | Slam Lock Mounting Plate R/H | 1 |
| 27 | Captive Nut Plate for Lock Bracket | 4 |
| 28 | Collapsible Washer for Hinge to Utility Shell | 4 |
| 29 | Plastic M5 Nut Cover | 4 |
| 30 | Plastic M8 Nut Cover | 12 |
| 31 | Slam Lock Strike Plate | 2 |
| 32 | Truckman AeroTop 2-3 Right Rotary Latch / Slam Lock | 1 |
| 33 | Truckman AeroTop 2-3 Left Rotary Latch / Slam Lock | 1 |
| 34 | Mud Wing Washers 40mm X 8mm ( Zinc & Clear) | 6 |
| 35 | Rod Locks for T-Handle Lock Set (580mm long) | 2 |
| 36 | Flat Washers 8mm x 25mm x 1.5mm (A2 Stainless Steel) | 4 |
| 37 | Setscrews M8mm x 50Mm Hex. (Z&C) | 6 |
| 38 | S/A Sponge ‘D’ Section 21 x 18mm | 1.5m |
| 39 | Double ‘D’ Seal Hardtop to Pickup Bed (Metre) | 8.5m |
| 40 | Truckman AeroTop 2 Rear Aperture Seal (Metre) | 2.4m |
| 41 | Tailgate Protector Tape (Each) 1500mm Long | 1 |
| 43 | Threaded Plates For All Classic Tops | 6 |
| 44 | Bulkhead Fixing Bracket for Truckman Hardtops 1570mm Long | 1 |
| 45 | Rear Door Glass Utility 4mm Dark Grey Flat Toughened | 1 |
| 46 | Truckman Classic Hardtop Glazing Rubber Insert | 2.6m |
| 47 | Rear Door Glass Utility 4mm Dark Grey Flat Toughened | 1 |
| 48 | Truckman Classic Glazing Rubber For Bulkhead Window | 2.6m |
| 49 | Truckman Utility/Classic Glazed Tailgate Complete with T Handle | 1 |

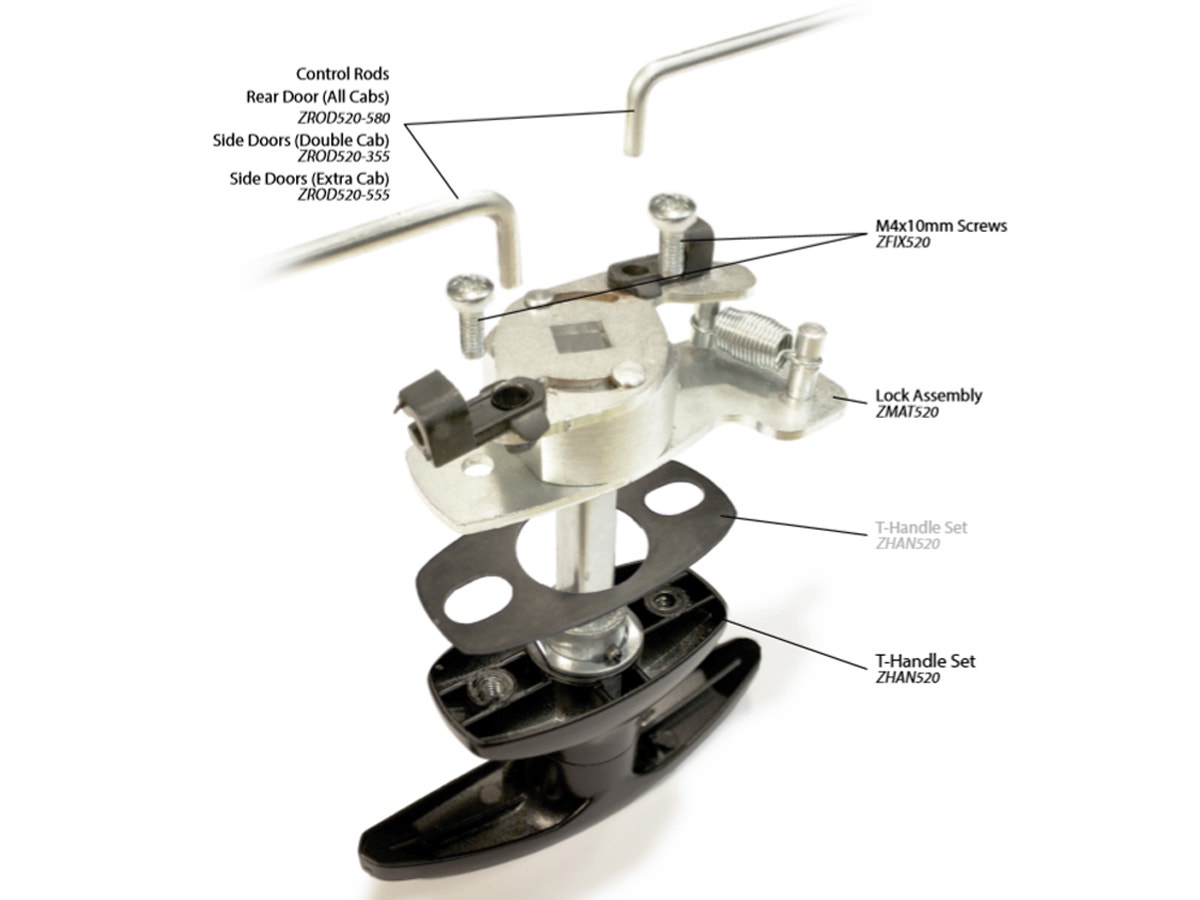

Rear Door Locking Mechanism Spare Parts
| Product Code | Component | Quantity |
| ZROD520-580 | Control Rods Rear Door (All Cabs) | 1 |
| ZFIX520 | M4x10mm Screws | 1 |
| ZMAT520 | Lock Assembly | 1 |
| ZHAN520 | T-Handle Set | 1 |
