Truckman S-Series Ford Ranger Mk5–7 Spare Parts (Serial Number M1057520 onwards)

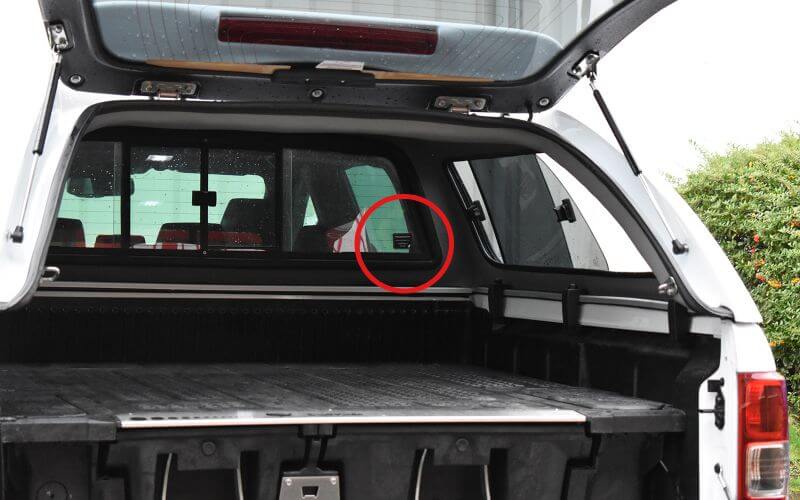

Please note: This page is for hard tops with serial numbers upwards of M1057520. For hardtops with serial numbers up to M1057520, please click here. View this image to find the location of the Truckman serial number.

Version 1.5

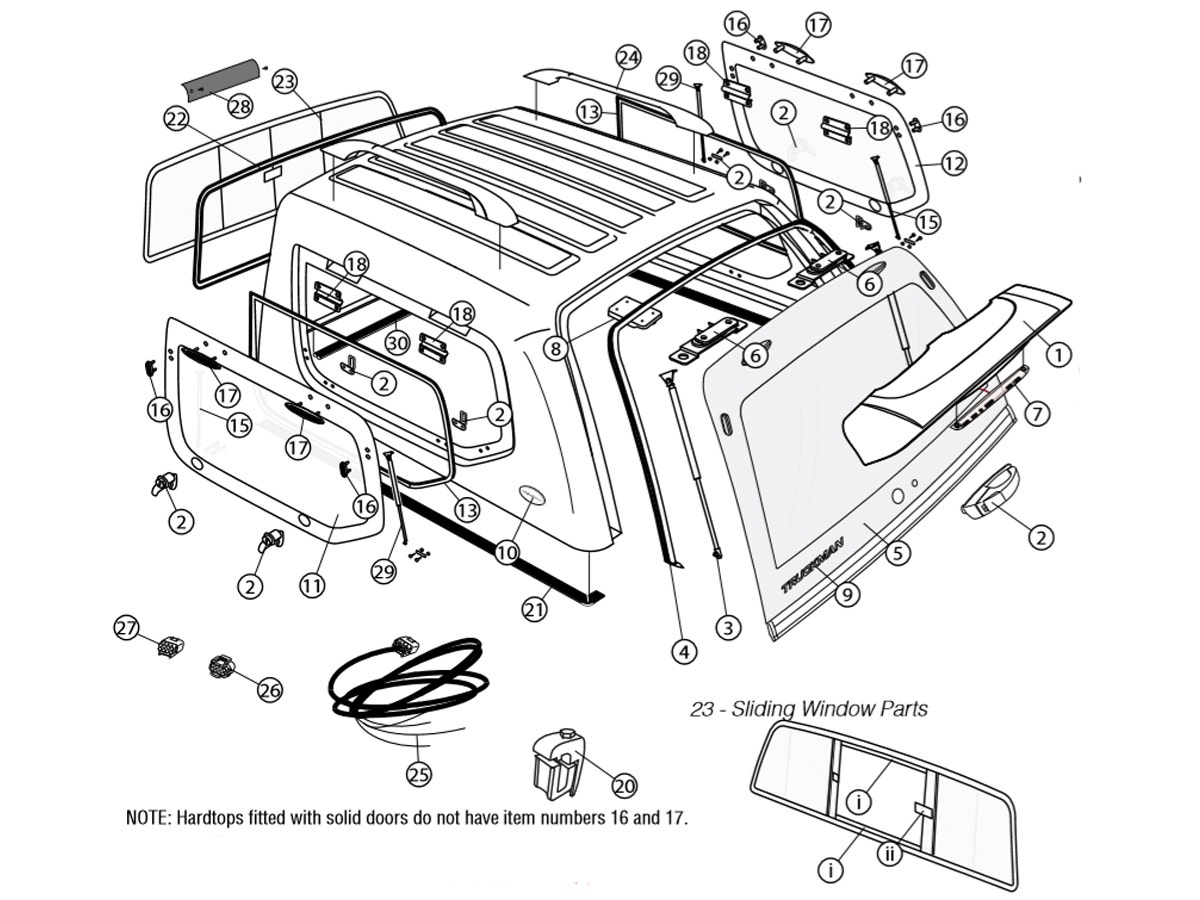

No.	Component	Quantity
1	Spoiler (painted) – Please contact us	1
2	Rear Door (x1) & Side Door (x4) Locking Handles w/ Keys	1
3	Rear Door Gas Strut	2
4	Rear Door Seal	1
5	Fully Built Truckman Luxury HR Window Ranger Mk5-7	1
6	Rear Door Hinge Assembly	2
7	Third Brake Light (In The Spoiler)	1
8	Rectangular Interior Light	1
9	‘Truckman’ Tailgate Logo	1
10	‘Truckman’ Oval Logo	2
11	Glass Side Access Door Left (Near Side)	1
11a	Solid Side Door (Near Side) – Please contact us	1
12	Glass Side Access Door Right (Off Side)	1
12a	Solid Side Door (Off Side) – Please contact us	1
13	Side Access Seal	2
15	Side Access Gas Strut (Left side)	4
16	Upper Gas Strut Glass Mount	1
17	Side Access Hinge Mounting Bolts	6
18	Side Access Complete Hinge Assembley (including 17)	1
20	Hardtop Clamps	1
21	Hardtop to Bed Seal	1
22	Bulkhead Window Outer Seal	1
23	Bulkhead Window Assembly (Sliding Version)	1
24	Truckman Luxury Roof Bars Left & Right Symmetrical	1
25	Vehicle Wiring Harness (Serial Number M103940- onwards)	1
26	Truckman Waterproof Multi Plug (Female for Hardtop)	1
27	Truckman Waterproof Multi Plug (Male Vehicle Loom)	1
28	Truckman Hardtop Brake Light Blanking Plate (for Ranger Mk6 2016 on)	1
29	Side Access Gas Strut (Right side)	1
30	Truckman Luxury Hardtop Double DD Seal Top to Bed at Front Rail	1

20 – Sliding Window Spare Parts

No.	Component	Quantity
i	Sliding Window Inner Seal	2
ii	Sliding Window Catch	1

Rear Door Spare Parts

No.	Component	Quantity
1	Rear Door Glass	1
1a	Fully built Rear door (All components in diagram except item 3 )	1
2	Rear Door Handle, Lock & Keys (Remote Locking with Cover)	1
3	Hardtop Gas Strut (SINGLE - left or right)	2
4	Rear Door Hinge Mount Plate	2
5	Rear Door Exterior Upper Gas Strut Mount	2
6	Rear Tailgate Hinge Assembly	2
7	Tailgate Slam Lock (Single R/H) With Switch	1
8	Tailgate Slam Lock (Single L/H)	1
9	Luxury Slam Lock Control Rods (Pair)	1
10	Lurury Lock Cover Enclosure	1
11	Luxury Rear Inner Door Handle	1
12	Door Handle Rod Lock Swing Arm Plate	1
13	Door Handle Return Spring	1
14	Door Handle Remote Locking with Cover Back Plate	1
15	Luxury Gas Strut Stud (Single -Left or Right)	2
16	Tailgate Slam Lock Strike (Pair) (D-Brackets)	1
17	Remote Locking Actuator	1
18	Truckman Luxury Closure Angle End Cap L/H	1
19	Truckman Luxury Closure Angle End Cap R/H	1
20	Truckman Closure Angle Bulb Seal	1
