Truckman Utility Isuzu D-Max Mk4–5 Double Cab Spare Parts
Version 1.0

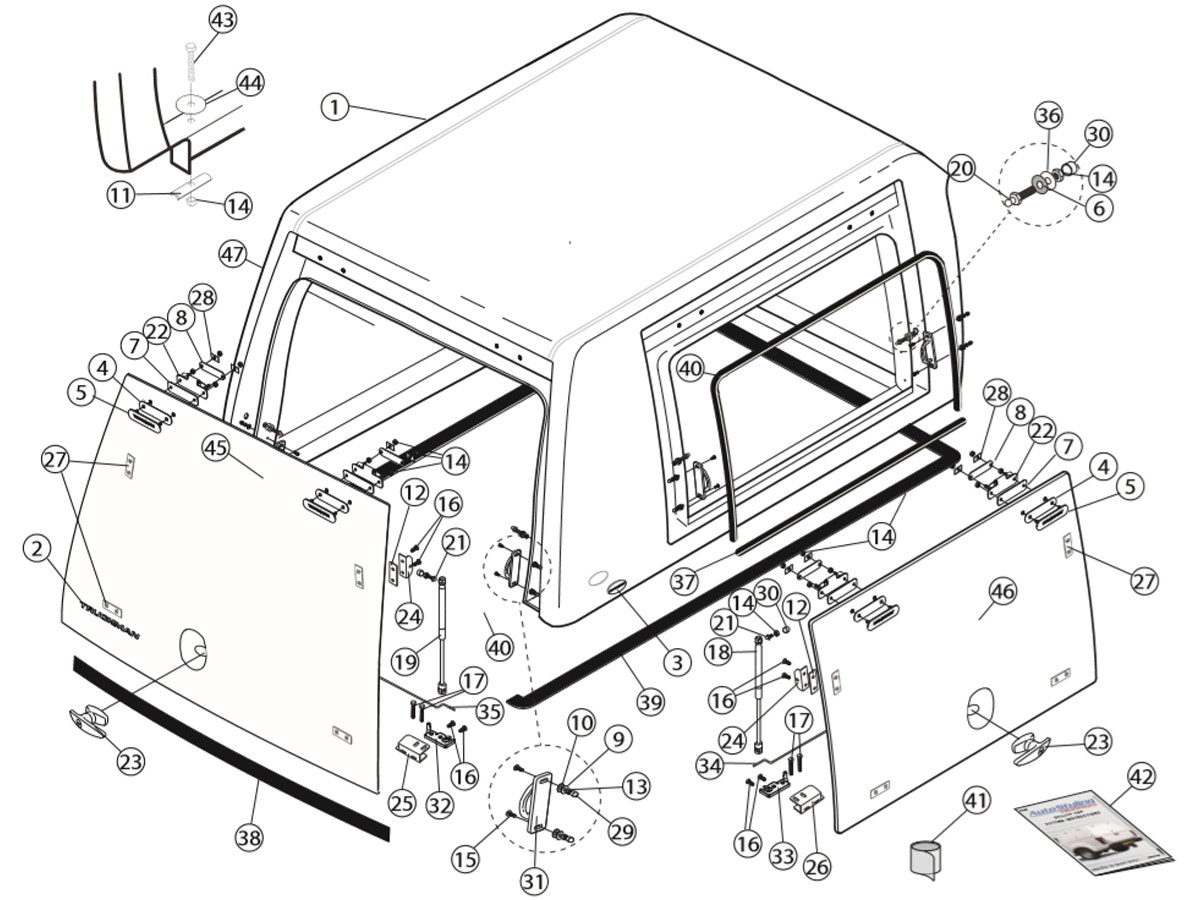

| No. | Component | Quantity |
| 1 | Truckman Utility Hardtop Shell | 1 |
| 2 | Truckman Tailgate Logo Silver | 1 |
| 3 | Truckman Oval Logo Decal | 2 |
| 4 | Rubber Gasket: AeroTop 2 & 3 | 6 |
| 5 | Two Part Stud Sets For AeroTop 2 & 3 Hinges | 6 |
| 6 | AeroTop 1 Black Washer For ZFIX951 & ZFIX950 | 6 |
| 7 | Hinge Rubber Gasket | 6 |
| 8 | Hinge to Shell Rubber Gasket | 6 |
| 9 | Flat Washers M5 x 19mm x 1.5mm (A2 Stainless Steel) | 12 |
| 10 | Plain Black CQ Rubber Washer 5mm I/D x 19mm O/D x 1.5mm Thick | 12 |
| 11 | Threaded Plates For All Classic Tops | 6 |
| 12 | Gas Strut Mount Bracket Gasket *M* | 6 |
| 13 | Nuts 5mm Nylon Lock | 12 |
| 14 | Nuts 8mm Nylon Lock | 42 |
| 15 | M5 x 20mm Pozi Pan Head A2 Stainless Screws | 12 |
| 16 | Screws M6 x 16mm A2 Pozi Pan Stainless DIN7985 | 24 |
| 17 | At3 Hex Screw Set (1/4” Unc X 1”) | 12 |
| 18 | Truckman Single 100N/200 Stroke Gas Strut For Side Access Doors | 4 |
| 19 | Struts Gas Strut 170N/Stroke | 2 |
| 20 | End Connectors For ZGS170 | 6 |
| 21 | Ball Stud Connector For ZGS270 | 6 |
| 22 | Hinge Assembly Unit | 6 |
| 23 | Tailgate T- Handle (Inc. Keys & Gasket) Utility Top | 3 |
| 24 | AeroTop Gas Strut Tailgate Mounting Bracket | 6 |
| 25 | Slam Lock Mounting Plate L/H | 3 |
| 26 | Slam Lock Mounting Plate R/H | 3 |
| 27 | Captive Nut Plate for Lock Bracket | 12 |
| 28 | Collapsible Washer for Hinge to Utility Shell | 12 |
| 29 | Plastic M5 Nut Cover | 12 |
| 30 | Plastic M8 Nut Cover | 36 |
| 31 | Slam Lock Strike Plate | 6 |
| 32 | Truckman AeroTop 2-3 Right Rotary Latch / Slam Lock | 3 |
| 33 | Truckman AeroTop 2-3 Left Rotary Latch / Slam Lock | 3 |
| 34 | Rod Locks for T-Handle Lock Set (355mm long) | 4 |
| 35 | Rod Locks for T-Handle Lock Set (580mm long) | 2 |
| 36 | Flat Washers 8mm x 25mm x 1.5mm (A2 Stainless Steel) | 12 |
| 37 | Truckman Rear Aperture Seal (Metre) | 2.5m |
| 38 | Classic/At 1 Closure Angle Seal Ranger Mk1-2 / B2500 Neoprene | 1.5m |
| 39 | Double ‘D’ Seal Hardtop to Pickup Bed (Metre) | 5.0m |
| 40 | Truckman AeroTop 2 Rear Aperture Seal (Metre) | 6.2m |
| 41 | Tailgate Protector Tape (Each) Ranger Mk5-6 (12 on) | 1 |
| 42 | Fitting Instructions for Utility Tops - D-Max Mk4 D/C | 1 |
| 43 | Setscrews M8mm x 50Mm Hex. (Z&C) | 6 |
| 44 | Mud Wing Washers 40mm X 8mm ( Zinc & Clear) | 6 |
| 45 | Truckman Classic/Utility Glazed Tailgate Complete with T Handle | 1 |
| 46 | Truckman Utility Solid Side Door Off Side All Models D/C | 1 |
| 47 | Truckman Utility Solid Side Door Near Side All Models D/C | 1 |

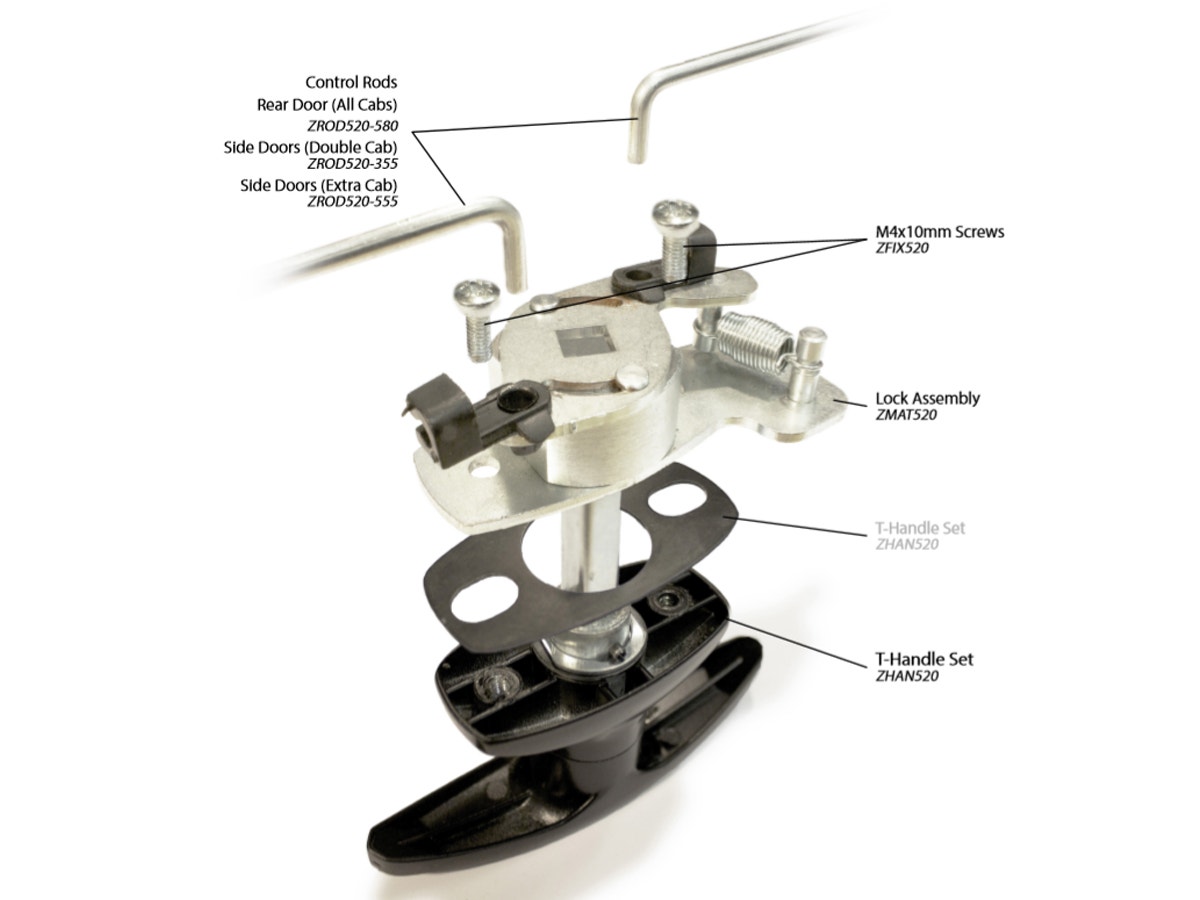

Rear Door Spare Parts
