Truckman Classic Mitsubishi L200 Series 5 Spare Parts
Version 1.1

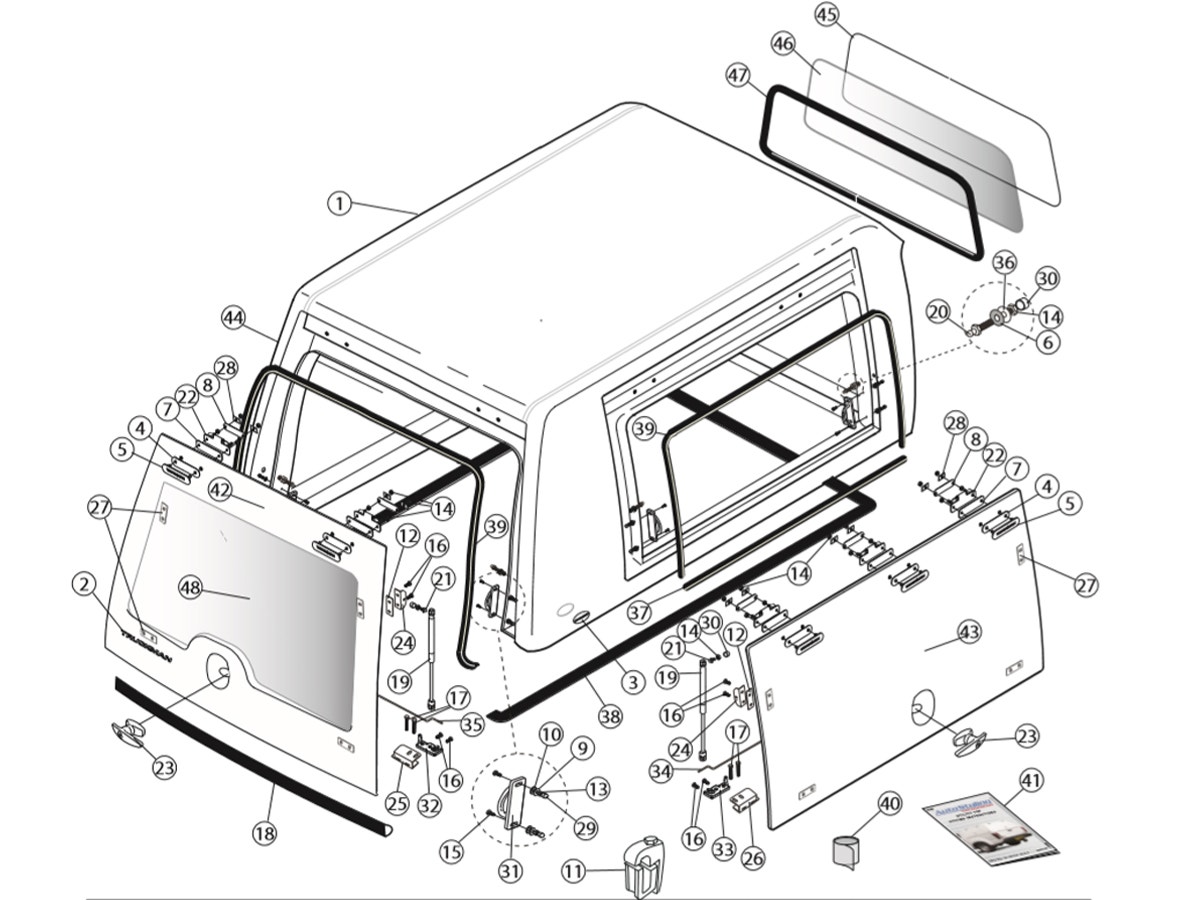

| No. | Component | Quantity |
| 1 | Truckman Utility Hardtop Shell | 1 |
| 2 | Truckman Tailgate Logo Silver | 1 |
| 3 | Truckman Oval Logo Decal | 2 |
| 4 | Rubber Gasket: AeroTop 2 & 3 | 8 |
| 5 | Two Part Stud Sets For AeroTop 2 & 3 Hinges | 8 |
| 6 | AeroTop 1 Black Washer For ZFIX951 & ZFIX950 | 6 |
| 7 | Hinge Rubber Gasket | 8 |
| 8 | Hinge to Shell Rubber Gasket | 8 |
| 9 | Flat Washers M5 x 19mm x 1.5mm (A2 Stainless Steel) | 12 |
| 10 | Plain Black CQ Rubber Washer 5mm I/D x 19mm O/D x 1.5mm Thick | 12 |
| 11 | AeroTop2/3 Fixing Clamps (& LR110 D/C) | 6 |
| 12 | Gas Strut Mount Bracket Gasket *M* | 6 |
| 13 | Nuts 5mm Nylon Lock | 12 |
| 14 | Nuts 8mm Nylon Lock | 44 |
| 15 | M5 x 20mm Pozi Pan Head A2 Stainless Screws | 12 |
| 16 | Screws M6 x 16mm A2 Pozi Pan Stainless DIN7985 | 24 |
| 17 | At3 Hex Screw Set (1/4” Unc X 1”) | 12 |
| 18 | S/A Sponge ‘D’ Section 21 x 18mm | 1.5m |
| 19 | Struts Gas Strut 170N/Stroke | 6 |
| 20 | End Connectors For ZGS170 | 6 |
| 21 | Ball Stud Connector For ZGS270 | 6 |
| 22 | Hinge Assembly Unit | 8 |
| 23 | Tailgate T- Handle (Inc. Keys & Gasket) Utility Top | 3 |
| 24 | AeroTop Gas Strut Tailgate Mounting Bracket | 6 |
| 25 | Slam Lock Mounting Plate L/H | 3 |
| 26 | Slam Lock Mounting Plate R/H | 3 |
| 27 | Captive Nut Plate for Lock Bracket | 12 |
| 28 | Collapsible Washer for Hinge to Utility Shell | 16 |
| 29 | Plastic M5 Nut Cover | 12 |
| 30 | Plastic M8 Nut Cover | 44 |
| 31 | Slam Lock Strike Plate | 6 |
| 32 | Truckman AeroTop 2-3 Right Rotary Latch / Slam Lock | 3 |
| 33 | Truckman AeroTop 2-3 Left Rotary Latch / Slam Lock | 3 |
| 34 | Rod Locks for T-Handle Lock Set (555mm long) | 4 |
| 35 | Rod Locks for T-Handle Lock Set (580mm long) | 2 |
| 36 | Flat Washers 8mm x 25mm x 1.5mm (A2 Stainless Steel) | 12 |
| 37 | Truckman Rear Aperture Seal (Metre) | 2.6m |
| 38 | Double ‘D’ Seal Hardtop to Pickup Bed (Metre) | 5.4m |
| 39 | Truckman AeroTop 2 Rear Aperture Seal (Metre) | 6.8m |
| 40 | Tailgate Protector Tape (Each) D-Max Mk4 (12 on) | 1 |
| 41 | Fitting Instructions for Utility Tops - Mitsubishi L200 S5 Club cab | 1 |
| 42 | Truckman Classic/Utility Glazed Tailgate Complete with T Handle | 1 |
| 43 | Truckman Utility Solid Side Door Off Side E/C | 1 |
| 44 | Truckman Utility Solid Side Door Near Side E/C | 1 |
| 45 | Truckman Classic/Aero 1-3 Glazing Rubber For Bulkhead Window (Metre) | 2.6m |
| 46 | Truckman Classic/AeroTop 1-3 Bulkhead Window Glass | 1 |
| 47 | Truckman Classic/Aero 1-3 Hardtop Glazing Rubber Insert (Metre) | 2.6m |
| 48 | Rear Door Glass Utility 4mm Dark Grey Flat Toughened | 1 |
Rear Door Handle Locking Mechanism Spare Parts
| Product Code | Component | Quantity |
| ZROD520-580 | Control Rods - Rear Door (All Cabs) | 1 |
| ZFIX520 | M4x10mm Screws | 1 |
| ZMAT520 | Lock Assembly | 1 |
| ZHAN520 | T-Handle Set 1 | 1 |
